EBC brakes
Carbon “X” Pads
For several years now this successful carbon graphite formula has been the choice of top enduro and moto-x riders for certain conditions around the world. The man advantage of this type of material is its lack of heat generation or conduction, which keeps both the rotor and caliper cool. Top Enduro and Hare Scrambles USA riders prefer this material for fast and dry riding conditions. The TT series or X pads do not last as long as a sintered pad but are a strong favourite amongst Enduro riders due to their LOW HEAT TRANSFER

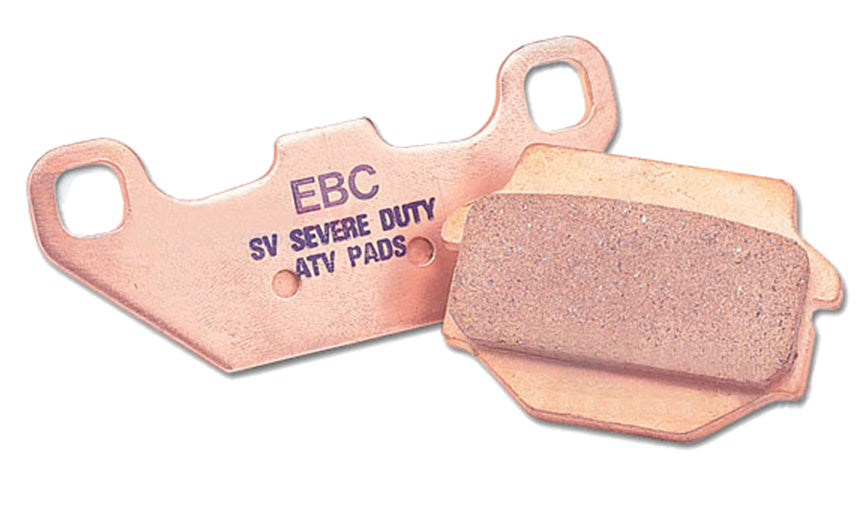

Severe Duty Brakes
If you want durability.... this is the pad to use.
High density sintered copper alloy for longest possible life in utility applications on ATV, especially in wet, mud, dust and dirt conditions.
You won’t find a longer lasting utility pad!
Plain ATV Brake Shoe
EBC brake shoes are made using high pressure Die cast alluminium platforms with bonded brake linings. All shoes are radius ground and edge trimmed and also feature lead in and lead out chamfers at lining ends and original equipment style brake shoe springs.
Grooved ATV Brake Shoe
Water Grooved EBC aluminium series brake shoes are made using high pressure Die cast alluminium platforms with bonded brake linings. All shoes are radius ground and edge trimmed and also feature lead in and lead out chamfers at lining ends and original equipment style brake shoe springs.
The multiple angled liner grooves are designed to channel away dirt, dust,water and debris from the braking area to improve braking and extend shoe and drum life.
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
BOMBARDIER/BRP | |||||||||||||||
DS 50 | 02-06 | (2 stroke) | 346 | 346 | 346G | 346G | 330 | 330G | |||||||
Quest 50 | 03-04 | 346 | 346 | 346G | 346G | 330 | 330G | ||||||||
DS 90 | 02-06 | (2 stroke/4 stroke) | 346 | 346 | 346G | 346G | 330 | 330G | |||||||
Quest 90 | 03-04 | (2 stroke/4 stroke) | 346 | 346 | 346G | 346G | 330 | 330G | |||||||
Rally 200 | 03-04 | (7550/7551/7552/7553) | FA83X | FA83X | FA83R | FA83R | |||||||||
Rally 200 | 05-07 | FA83X | FA83X | FA83R | FA83R | FA165/2X | FA165/2R | ||||||||
DS 250 | 06 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
Outlander 330 HO | 04-05 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander 400 | 03-04 | (7535/7716) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 400 Max HO | 03-06 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander 650 HO | 06 | Efi 4 x 4/HO Efi XT 4 x 4 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 650 HO | 06 | Efi 4 x 4 HO Efi XT 4 x 4 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 800 | 06 | (All models) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Traxter 4 x 4 | 99-00 | (Model types 7400 - 7408/7413 - 7422/7425 - 7428/7455/7456) | FA266 | FA266 | FA266R | FA266R | FA266 | FA266R | |||||||
Traxter 4 x 4 | 01 | (Model types 7459/7460) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Traxter XL 4 x 4 | 01 | Up to SN V000708 (Model type 7448) | FA266 | FA266 | FA266R | FA266R | FA266 | FA266R | |||||||
Traxter XL 4 x 4 | 01-04 | (Model types 7448 from SN V000709/7458/7477/7489/7565/7571) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Traxter XT 4 x 4 | 01 | (Model types 7446/7452/7467/7468/7472/7481/7493/7494) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Traxter Autoshift | 01 | (Model types 7431/7432/7433/7434) | FA266 | FA266 | FA266R | FA266R | FA266 | FA266R | |||||||
Traxter Autoshift | 01-05 | (Model types 7453/7454/7461/7462/7469/7470/7471/7475/7480/7495/7496/7497/7560/7561/7562/7563/7564/7566/7567/7568/7569/7570/7595/7596/7597/7598/7599 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Traxter Footshift | 01 | (Model types 7439/7440/7441/7442) | FA266 | FA266 | FA266R | FA266R | FA266 | FA266R | |||||||
Traxter Footshift | 01 | (Model types 7473/7474) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest 500 4 x 4 | 02-04 | (Model types 7478/7515/7525/7539/7540/7546/7547/7583/7584/7713/7724/7725/7731) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Traxter Max | 03-05 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | |||||
Quest 500 2 x 4 | 02 | (Model types 7541/7542/7548/7549/7585/7586/7714/7726) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest 650 2 x 4 | 02 | (Model type 7582) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest 650 4 x 4 | 02-04 | (Model types 7443/7445/7516/7517/7523/7536/7537/7543/7544/7580/7581/7730) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest 650 XT 4 x 4 | 02 | (Model types 7522/7523/7534/7545/7715/7727/7728) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest Max 650 | 03- | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
CAN AM | |||||||||||||||
DS 650 | 00-05 | (Model types 7404/7409/7463/7482/7518/7519/7587/7588 - 7483) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
DS 650 Baja/X | 01-06 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Traxter Max 650 | 04-05 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | |||||
Sarasota 1000 Side x Side | 05 | ||||||||||||||
Traxter XL | 04 | (7920/7921) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | ||||
Quest Max/STD/XT | 04-05 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA317X | FA317R | FA317SV | |||||
DS 70 2 x 4 Mini | 08-21 | 4T | 346 | 346 | 346G | 346G | 307 | 307G | |||||||
DS 90 2 x 4 | 06-21 | 4T | 346 | 346 | 346G | 346G | 307 | 307G | |||||||
DS 90 X 2 x 4 | 08-21 | 4T | FA83X | FA83X | FA83R | FA83R | FA83X | FA83R | |||||||
Rally 200 | 05-07 | (4A7A/B/C/D/E/F) | FA83X | FA83X | FA83R | FA83R | FA307X | FA307R | |||||||
DS 250 | 06-22 | (3J7A/B/C) | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | |||||||
Outlander 400 4 x 4 STD | 07-14 | (2D7A/B/C/D/E/F/G/H) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 400 XT 4 x 4 | 07-14 | (2E7A/B/C/D/E/F) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 400 STD 4 x 4 | 07-14 | (2F7B/C/D/E/F/G/H/J) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 400 XT 4 x 4 | 06-13 | (2G7A/B/C/D/E) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 400 EFI STD international | 15 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
DS 450 2 x 4/EFi | 08-15 | road model with Hand brake | FA468R | FA468R | FA398R | ||||||||||
DS 450 X 2 x 4/EFI | 08-09 | road model with Hand brake | FA468R | FA468R | FA398R | ||||||||||
DS 450 Xxc/Xxm | 09-15 | Offroad model without hand brake | FA468R | FA468R | FA398R | ||||||||||
Outlander 450 EFI, MAX and T3 | 18-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | ||||
Outlander 450 Max and T3 | 19-22 | 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | |||
Outlander 450 T Regulation , T MAX | 20-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | ||||
Outlander 450 EFI STD DPS, XU & XU+ | 21-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | ||||
Outlander L 450 EFi | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander L 450 Max EFi | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 500 STD 4 x 4 | 07-12 | (2T7A/B/C/D) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 500 XT 4 x 4 | 07-12 | (2U7A/B/C/D) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 500 STD 4 x 4 | 07-12 | (2W7A/B/C) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 500 XT 4 x 4 | 07-12 | (2X7A/B/C) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 500 4 X 4 STD, DPS, XT | 13-15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander Max 500 4 X 4 STD, DPS, XT | 13-14 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 500 L EFi | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander Max 500 L Efi | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Renegade 500 EFI 4 x 4 | 07-08 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 500 EFI 4x4 | 09-12 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 500 STD, EFi | 12-15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 570 Max Pro | 17 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 570 T3 EFI inc 3FJD | 18 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 570 Max EFI T3 Pro inc DPS XT | 18-22 | Inc PRO NORDIC | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 570 EFI, XMR, XU | 19-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 570 EFI-DPS PRO-T3 | 19-21 | Inc PRO NORDIC | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 570 T & T MAX-DPS,XU & XU+ | 20-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 570 EFI | 18-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 570 EFI, STD , XMR | 20-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
DS 650 X 3B7A/B | 07 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA618R | FA307SV | |||||
Outlander 650 4 x 4 STD | 07-12 | (2N7A/B/C/D/E/F/G/H) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 650 XT 4 x 4 | 07-12 | (2P7A/B/C/D/E/F) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 650 STD 4 x 4 | 07-12 | (2R7A/B/C/D/E/F/G/H/J/K) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 650 XT 4 x 4 | 07-12 | (2S7A/B/C/D/E/F) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 650 STD, DPS, XMR & XT | 13-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 650 XMR | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander Max 650 X - TP | 12 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander Max 650 EFI STD, DPS & XT | 13-22 | Inc 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 650 Max Pro | 17 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 650 EFI T3 & MAX | 18-19 | Inc PRO NORDIC | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
CAN AM | |||||||||||||||
Outlander 650 Max EFI T3 Pro inc DPS XT | 18-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 650 EFI 6x6 | 16-22 | Inc 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 650 T EFI, XT, XU+ & T MAX | 21-22 | Inc 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Renegade 650 EFI T, T3, STD XXC | 18-22 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 800 STD 4 x 4 | 07-08 | (2H7A/B/C/D/E/F/G/H) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 800 XT 4 x 4 | 07-08 | (2J7A/B/C/D/E/F) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 800 R EFI | 09 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander 800 R XT | 09-10 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander 800 R STD | 12-15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 800 R STD, DPS, XT, XT-P | 14-15 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander Max 800 R EFI | 09-12 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander Max 800 R XT | 09-12 | FA307X | FA307R | FA307SV | FA307X | FA307R | FA307SV | ||||||||
Outlander MAX 800 R STD, DPS, XT, XT-P | 14-15 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 800 R XT, XXC | 12-15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 800 R Mmr | 15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander Max 800 Ltd 4 x 4 | 07-12 | (2M7A/B/C) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 800 STD 4 x 4 | 07-12 | (2K7A/B/C/D/E/F/G/H/J) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander Max 800 XT 4 x 4 | 07-08 | (2L7A/B/C/D/E/F) | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | ||||
Outlander 800 R Xmr | 11-12 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander 800 R XXC | 11 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Outlander Max 800 R X-TP | 12 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 X 4 x 4/EFI | 08 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 4 x 4/EFI | 07-08 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 R EFI | 09-11 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 EFI STD & XXC | 13-15 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 800 R X | 09-10 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 R XXC | 11 | FA307X | FA317X | FA307R | FA317R | FA307SV | FA317SV | FA307X | FA307R | FA307SV | |||||
Renegade 800 R XXC | 12-14 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 850 EFI G2 | 18-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 850 EFI STD, DPS, XT & XT-P | 18-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 850 XMR | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 850 EFI Max G2 | 18-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 850 EFI Max XT XT-P | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 850 EFI STD XXC | 18-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 1000 STD | 12 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 1000 XT | 12 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | ||||||
Outlander 1000 DPS, XT, XT-P | 13 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 1000 4 x 4 | 13-15 | (LTD) | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 1000 XMR | 13-18 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 1000 XMR | 20-21 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 1000 Max DPS, XT, XT-P | 13-14 | 4x4 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA617X | FA617R | |||||
Outlander 1000 Max EFI T3 L and R | 16-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 1000 EFI T3, R, XXC | 18-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 1000 6x6 EFI T3 | 16-21 | 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 1000 6x6 XT | 14-15 | 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 1000 G2 | 18-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 1000 T | 20-21 | Inc 6x6 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | ||
Outlander 1000 Max | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Outlander 1000 T Max | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 1000 EFI T3 and R | 17-19 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 1000 STD EFi | 12-14 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 1000 XXC | 12-14 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 1000 R, XMR, XXC, | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Renegade 1000 T 1000 | 20-21 | FA618X | FA617X | FA618R | FA617R | FA618SV | FA617SV | FA618X | FA617X | FA618R | FA617R | FA618SV | |||
Commander Electric 9KW, STD, XT, LSV | 13-15 | FA468R | FA468R | ||||||||||||
Commander 800 XT/DPS | 11-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 800 | 11 | Single rear right disc brake | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA165R | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
CAN AM | |||||||||||||||
Commander 800 STD, DPS, XT, 800R EFi | 12-15 | Single rear right disc brake | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA165R | |||||
Commander 800 STD 800R, X 1000 | 13-14 | Supplement-IS Market /Locking rear Diff | FA398R | FA398R | |||||||||||
Commander 800 R | 11-15 | (STD) | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | ||||
Commander 800 R XT | 11-14 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 1000 EFI | 18-19 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA135X | FA135R | FA135SV | |||||
Defender 500cc HD5 | 17-19 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA683X | FA683R | ||||||
Defender 799cc | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 799cc DPS | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 799cc XT | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 799cc XT Cab | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender Max | 17 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Defender HD7 Base - DPS | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Defender MAX HD7 Base - DPS | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Defender 799cc HD8 | 17-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender Max 799cc HD8 | 18-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 976cc HD10 | 17-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender Max 976cc Max HD10 | 18-21 | inc XMR | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | ||
Defender PRO PRO HD10 | 20-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender T T | 17 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | ||||
Commander 1000 STD | 11-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 1000 | 11 | Single rear right disc brake | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA165R | |||||
Commander 1000 STD, DPS, XT, X, XT-P, 1000 Efi | 12-17 | Single rear right disc brake | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA165R | |||||
Commander 1000 STD, DPS XT, XT-P 1000 | 13-15 | Supplement-IS Market /Locking rear Diff | FA398R | FA398R | |||||||||||
Commander 1000 DPS | 13-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 1000 LTD | 12-14 | Single rear right disc brake | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA165R | |||||
Commander 1000 X | 11-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 1000 XT | 11-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander 1000 XT-P | 14-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA135X | FA135R | FA135SV | |||||
Commander Max 1000 DPS/XT | 14 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Commander Max 1000 DPS/XT | 15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Commander Max 1000 LTD | 15-17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Commander 1000R 1000R EFI | 21-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Commander MAX 1000R MAX 1000R EFI | 21-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 976cc | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 976cc DPS | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 976cc XT | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Defender 976cc XT Cab | 16 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | FA684SV | |||
Maverick 1000 Std | 13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 XRS | 13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 STD/XRS/XRS - DPS | 14-16 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 STD_XRS_XRS - DPS | 15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 XDS - DPS | 15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 XMR | 14-15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick 1000 XXC | 14-16 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick Max 1000 Std, XRS | 14-15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick Max 1000 XDS - DPS | 15-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick Max 1000 XRS - DPS | 14-15 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick Max 1000 Max | 16-17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA307X | FA317X | FA307R | FA317R | FA307SV | |||
Maverick Trail 700 Trail | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Maverick Trail 800 Trail EFI | 18-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Maverick Trail 1000 Trail EFI | 18-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Maverick Sport 1000 Sport | 19-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Maverick Sport 1000R Sport 1000R | 19-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
Maverick Sport MAX 1000R Sport MAX 1000R | 19-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | FA682SV | |||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
CF MOTO ATV | |||||||||||||||
Maverick X3 | 17 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick X3 Max STD | 17-18 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick X3 Turbo | 18 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick X3 Max Turbo STD | 18 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick X3 Turbo R | 18 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick X3 Max Turbo R | 18 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick Turbo Turbo | 19-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick Turbo R Turbo R | 19-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick Turbo RR Turbo RR | 19-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick MAX Max Turbo DS | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Maverick MAX Max Turbo R | 19-22 | Inc XDS, XMR, XRS | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | |||
Traxter T | 17 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | ||||
Traxter HD5 | 17-20 | Single rear right disc brake | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA683X | FA683R | |||||
Traxter HD8 | 17-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | ||||
Traxter HD10 | 17-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA684X | FA685X | FA684R | FA685R | ||||
Traxter Max HD9 | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter HD10 Max | 17-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T T HD5 | 18-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T HD7 Base-XU T Reg | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T T HD8 | 18-21 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T HD9 Base-XU T Reg | 22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T T HD10 | 18-20 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
Traxter T MAX T Max | 18-22 | FA682X | FA683X | FA682R | FA683R | FA682SV | FA683SV | FA682X | FA683X | FA682R | FA683R | ||||
400 C-Force | 14-16 | FA453X | FA453X | FA453R | FA453R | FA344X | FA344R | ||||||||
400 C-Force | 14-16 | Parking brake | FA232X | FA232R | |||||||||||
400 C-Force | 17-19 | FA726R | FA726R | FA726SV | FA726SV | FA651X | FA651R | FA651SV | |||||||
500 C-Force | 14-16 | FA453X | FA453X | FA453R | FA453R | FA344X | FA344R | ||||||||
500 C- Force | 17-18 | FA726R | FA726R | FA726SV | FA726SV | FA651X | FA651R | FA651SV | |||||||
500 C-Force | 14-16 | Parking brake | FA232X | FA232R | |||||||||||
500 C-Force HO EPS | 14-16 | FA453X | FA453X | FA453R | FA453R | FA317X | FA317R | ||||||||
600 C-Force | 18-19 | FA726R | FA726R | FA726SV | FA726SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||||
600 C-Force Touring | 20-21 | Touring | FA726R | FA726R | FA726SV | FA726SV | FA747R | FA747R | FA747SV | FA747SV | |||||
600 C-Force | 20 | Touring | FA453X | FA453X | FA453R | FA453R | FA317X | FA317R | |||||||
800 C-Force EPS | 14-16 | FA453X | FA453X | FA453R | FA453R | FA344X | FA344R | ||||||||
500 U-Force EPS | 14-16 | FA135X | FA165X | FA135R | FA165R | FA135SV | FA165SV | FA67X | FA67X | FA67R | FA67R | ||||
500 Z-Force | 14-16 | FA135X | FA165X | FA135R | FA165R | FA135SV | FA165SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||
800 U-Force | 13-17 | FA135X | FA165X | FA135R | FA165R | FA135SV | FA165SV | FA67X | FA67X | FA67R | FA67R | ||||
800 Z-Force | 15-16 | FA135X | FA165X | FA135R | FA165R | FA135SV | FA165SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||
800 EX Z-Force | 14-16 | FA135X | FA165X | FA135R | FA165R | FA135SV | FA165SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||
800 EX Z-Force | 20-22 | FA726X | FA726X | FA726R | FA726R | FA726SV | FA726SV | FA747R | FA747R | FA747SV | FA747SV | ||||
950 Z-Force | 20 | FA726X | FA726X | FA726R | FA726R | FA726SV | FA726SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||
1000 U-Force | 20 | FA726X | FA726X | FA726R | FA726R | FA726SV | FA726SV | FA651X | FA651X | FA651R | FA651R | FA651SV | FA651SV | ||
1000 Z-Force | 17-19 | FA726X | FA726X | FA726R | FA726R | FA726SV | FA726SV | FA747R | FA747R | FA747SV | FA747SV | ||||
HONDA | |||||||||||||||
ATC 70 | 1979-1985 | N/A | 310 | 310G | |||||||||||
TRX 70 Fourtrax | 1986-1987 | 346 | 346 | 346G | 346G | 330 | 330G | ||||||||
TRX 90 Fourtrax/Sportrax | 1993-06 | 303 | 303 | 303G | 303G | 306 | 306G | ||||||||
TRX 90 EX | 07-08 | 303 | 303 | 303G | 303G | 306 | 306G | ||||||||
TRX 90 X | 09-22 | 303 | 303 | 303G | 303G | 306 | 306G | ||||||||
ATC 110 | 1979-1985 | N/A | N/A | 306 | 306G | ||||||||||
ATC 125 M | 1984-1987 | 303 | 303G | 306 | 306G | ||||||||||
TRX 125 Fourtrax | 1985-1988 | 303 | 303 | 303G | 303G | 306 | 306G | ||||||||
ATC 185 | 1980 | 303 | 303G | 306 | 306G | ||||||||||
ATC 185 S | 1981-1983 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 | 1981-1983 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 E Big Red | 1982-1983 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 ES Big Red | 1984 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 M | 1984-1985 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 S | 1984-1986 | 303 | 303G | 306 | 306G | ||||||||||
ATC 200 X | 1983-1985 | FA84X | FA84R | FA84SV | FA84/2R | ||||||||||
ATC 200 X | 1986-1987 | FA84X | FA84R | FA84SV | FA84X | FA84R | FA84SV | ||||||||
TRX 200 Fourtrax | 1984 | 339 | 339 | 339G | 339G | 306 | 306G | ||||||||
TRX 200 SX Fourtrax | 1986-1988 | 345 | 345 | 345G | 345G | 306 | 306G | ||||||||
TRX 200 Fourtrax | 1990-1991 | 345 | 345 | 345G | 345G | 306 | 306G | ||||||||
TRX 200 D Type II Fourtrax | 1991-1997 | 345 | 345 | 345G | 345G | 306 | 306G | ||||||||
ATC 250 R | 1981 | FA54X | FA54R | FA54SV | 306 | 306G | |||||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
HONDA | |||||||||||||||
ATC 250 R | 1982 | FA54X | FA54R | FA54SV | FA84/2R | ||||||||||
ATC 250 R | 1983-1984 | FA84X | FA84R | FA84SV | FA84X | FA84R | FA84SV | ||||||||
ATC 250 R | 1985-1986 | FA92X | FA92R | FA92X | FA92R | ||||||||||
ATC 250 ES Big Red | 1985-1987 | 306 | 306G | 315 | 315G | ||||||||||
ATC 250 SX | 1985-1987 | 306 | 306G | 315 | 315G | ||||||||||
FL 250 Odyssey | 1977-1984 | N/A | N/A | FA40 | N/A | ||||||||||
FL 250 Odyssey | 1977-1984 | Handbrake | 306 | 306G | |||||||||||
TRX 250 Fourtrax | 1985-1987 | 339 | 339 | 339G | 339G | 315 | 315G | ||||||||
TRX 250 R Fourtrax | 1986-1987 | FA125X | FA125X | FA125R | FA125R | FA92X | FA92R | ||||||||
TRX 250 R Fourtrax | 1988-1989 | FA125X | FA125X | FA125R | FA125R | FA92X | FA92R | ||||||||
TRX 250 X Fourtrax | 1987-1992 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
TRX 250 EX Sportrax | 01-08 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 340 | 340G | ||||||
TRX 250 TE Recon ES | 1997-21 | 345 | 345 | 345G | 345G | 340 | 340G | ||||||||
TRX 250 TM Recon | 1997-21 | 345 | 345 | 345G | 345G | 340 | 340G | ||||||||
TRX 250 X | 09-14 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 340 | 340G | ||||||
TRX 300 Fourtrax | 1988-00 | 2WD | 345 | 345 | 345G | 345G | 315 | 315G | |||||||
TRX 300 FW Fourtrax | 1988-00 | 4WD | 347 | 347 | 347G | 347G | 315 | 315G | |||||||
TRX 300 EX Fourtrax | 1993-08 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
TRX 300 X | 09-11 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
ATC 350 X | 1985 | FA92X | FA92R | FA84X | FA84R | FA84SV | |||||||||
ATC 350 X | 1986 | FA125X | FA125R | FA84X | FA84R | FA84SV | |||||||||
FL 350 R Odyssey | 1985-1987 | 339 | 339 | 339G | 339G | FA111R | |||||||||
TRX 350 /TRX 350 D Fourtrax/Foreman | 1986-1989 | 342 | 342 | 342G | 342G | 343 | 343G | ||||||||
TRX 350 TE Fourtrax Rancher ES/FE Fourtrax Rancher 4x4 ES | 00-06 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 350 TM Fourtrax Rancher/FM Fourtrax Rancher 4x4 | 00-06 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
FL 400 R Pilot | 1989-1990 | 339 | 339 | 339G | 339G | FA111R | |||||||||
TRX 400 EX Fourtrax | 99-00 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
TRX 400 EX Sportrax | 01-08 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
TRX 400 FW Fourtrax Foreman | 1995-01 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 400 FW Fourtrax Foreman | 03 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 400 FM Fourtrax Foreman | 02 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 400 FA Fourtrax Rancher AT | 04-07 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 400 FGA Foutrax Rancher AT Gpscape | 04-07 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 400 X | 09-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
TRX 420 TM Fourtrax Rancher | 06-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 TM1 Rancher | 14-21 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 TE Fourtrax Rancher ES | 06-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 TE1 Rancher ES | 14-21 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 FPAFourtrax Rancher AT | 09-12 | Power Steering | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 420 FA Fourtrax Rancher AT | 09-14 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | |||||
TRX 420 FA1 Rancher 4 x 4 | 14-21 | Auto/DCT | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FA2 Rancher 4 x 4 | 14-21 | Auto/DCT/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FA5 Rancher 4 x 4 | 14-21 | Auto/DCT/IRS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FA6 Fourtrax Rancher 4 x 4 | 14-21 | Auto/DCT/IRS/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 420 FPE Fourtrax Rancher 4 x 4 | 09-13 | ES/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FE Fourtrax Rancher 4 x4 | 06-13 | ES | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FE1 Rancher 4 x 4 | 14-21 | ES | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FPM Fourtrax Rancher 4x4 | 09-13 | PS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 420 FM Fourtrax Rancher 4x4 | 06-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 FM1 Rancher 4 x 4 | 14-21 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 420 FM2 Rancher 4 x 4 | 14-21 | EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | |||||
TRX 450 ES Fourtrax Foreman ES | 98-01 | 347S | 347S | 347SG | 347SG | 351 | 351G | ||||||||
TRX 450 S Fourtrax Foreman S | 98-01 | 347S | 347S | 347SG | 347SG | 351 | 351G | ||||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
HONDA | |||||||||||||||
TRX 450 FE Fourtrax Foreman ES | 02-04 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 450 FM Fourtrax Foreman S | 02-04 | 347 | 347 | 347G | 347G | 351 | 351G | ||||||||
TRX 450 | 04-11 | FA185X | FA185X | FA185R | FA185R | FA373X | FA373R | FA373SV | |||||||
SXS 500 SXS M2 Pioneer | 15-17 | 2 Seat | FA712X | FA712X | FA712R | FA712R | FA712SV | FA712SV | FA714X | FA714R | FA714SV | ||||
TRX 500 FA Fourtrax Rubicon | 01-04 | 347 | 347 | 347G | 347G | 343 | 343G | ||||||||
TRX 500 FA5 AC | 14-19 | Auto/DCT | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 500 FA6 AC | 14-19 | Auto/DCT/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 500 FA7 AC, 2AC | 14-19 | Auto/DCT/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 500 FGA Fourtrax Foreman Rubicon Gpscape | 04 | 347 | 347 | 347G | 347G | 343 | 343G | ||||||||
TRX 500 FA/FAA Fourtrax Foreman Rubicon | 05-14 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FGA Fourtrax Foreman Rubicon Gpscape | 05-08 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FE/FEA Fourtrax Foreman 4x4/ES | 05-11 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FE Fourtrax Foreman 4x4 | 12-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 343 | 343G | ||||||
TRX 500 FE1 Foreman ES | 14-21 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 500 FE2 AC, 2AC | 14-19 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 500 FM/FMA Fourtrax Foreman 4x4 | 05-11 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FM Foretrax Foreman 4x4 | 12-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 343 | 343G | ||||||
TRX 500 FM1 AC | 14-19 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 500 FM2 AC, 2AC | 14-19 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 500 FM5 Foreman Rubicon 4 x 4 | 15-21 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | |||||
TRX 500 FM6 AC, 2AC | 15-19 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | |||||
TRX 500 FPE Fourtrax Foreman 4x4 ES/EPS | 08-11 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FPE Foretrax Foreman 4x4 | 12-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 343 | 343G | ||||||
TRX 500 FPM Fourtrax Foreman 4x4/EPS | 08-11 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 500 FPM Foretrax Foreman 4x4 | 12-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 343 | 343G | ||||||
TRX 500 TM5/TM6 Fourtrax Foreman 2x4 | 05-06 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | 343 | 343G | ||||||
TRX 520 FA5 A/AC | 20-22 | Auto/DCT | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 520 FA6 A/AC | 20-22 | Auto/DCT/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 520 FA7 2A/2AC, 3A/3AC | 20-22 | Auto/DCT/EPS | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | ||||
TRX 520 FE2 A/AC | 20-22 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 520 FM1 A/AC, 2A/2AC | 20-22 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 520 FM2 A/AC, 2A/2AC | 20-22 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 351 | 351G | ||||||
TRX 520 FM6 A/AC, 2A/2AC, 3A/3AC | 20-22 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA373X | FA373R | FA373SV | |||||
SXS 520 M AC | 21-22 | 2 Seat | FA712X | FA712X | FA712R | FA712R | FA712SV | FA712SV | FA714X | FA714R | FA714SV | ||||
TRX 650 FA Rincon | 03-05 | 347 | 347G | 347G | FA373X | FA373R | FA373SV | ||||||||
TRX 650 FGA Fourtrax Rincon Gpscape | 04-05 | 347 | 347G | 347G | FA373X | FA373R | FA373SV | ||||||||
TRX 680 Fourtrax Rincon Gpscape | 06-09 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | FA373X | FA373R | FA373SV | |||||
TRX 680 FA Fourtrax Rincon | 06-22 | FA410X | FA410X | FA410R | FA410R | FA410SV | FA410SV | FA373X | FA373R | FA373SV | |||||
MUV 700 Big Red | 09-13 | FA476X | FA477X | FA478X | FA479X | ||||||||||
SXS 700 M2 Pioneer | 14-18 | 2 Seat | FA712X | FA712X | FA712R | FA712R | FA712SV | FA712SV | FA714X | FA714R | FA714SV | ||||
SXS 700 M4 Pioneer | 14-18 | 4 Seat | FA712X | FA712X | FA712R | FA712R | FA712SV | FA712SV | FA714X | FA714R | FA714SV | ||||
TRX 700 XX | 08-11 | FA185X | FA185X | FA185R | FA185R | FA410X | FA410R | ||||||||
SXS 1000 Pioneer | 16-22 | 2 Seater | FA701X | FA702X | FA701R | FA702R | FA701SV | FA702SV | FA703X | FA704X | FA703R | FA704R | FA703SV | FA704SV | |
SXS 1000 Pioneer | 16-22 | 4 Seater | FA701X | FA702X | FA701R | FA702R | FA701SV | FA702SV | FA703X | FA704X | FA703R | FA704R | FA703SV | FA704SV | |
SXS 1000 1000 R | 19-22 | 2 Seater | FA701X | FA702X | FA701R | FA702R | FA701SV | FA702SV | FA703X | FA704X | FA703R | FA704R | FA703SV | FA704SV | |
SXS 1000 1000 X | 21-22 | 2 Seater | FA701X | FA702X | FA701R | FA702R | FA701SV | FA702SV | FA703X | FA704X | FA703R | FA704R | FA703SV | FA704SV | |
SXS 1000 1000 X-4 | 21-22 | 4 Seater | FA701X | FA702X | FA701R | FA702R | FA701SV | FA702SV | FA703X | FA704X | FA703R | FA704R | FA703SV | FA704SV | |
KAWASAKI | |||||||||||||||
KSF 50 KFX 50 A1/A2/A3 | 03-05 | 614 | 614 | 614G | 614G | 604 | 604G | ||||||||
KSF 50 KSF 50 B7F/B8F/B9S/BDF/BEF/BFF/BGF/BHF | 07-09 | 338 | 338 | 338G | 338G | FA305X | FA305R | ||||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
KAWASAKI | |||||||||||||||
KFX 50 KFX 50 | 13-22 | 338 | 338 | 338G | 338G | FA305X | FA305R | ||||||||
KSF 80 A1/A2/A3/A6F | 03-06 | KFX 80 | 614 | 614 | 614G | 614G | 618 | 618G | |||||||
KFX 90 | 01-22 | 338 | 338 | 338G | 338G | FA305X | FA305R | ||||||||
KLF 110 A1/A2/B1/B2 Mojave | 1987-1988 | 603 | 603 | 603G | 603G | 602 | 602G | ||||||||
KLT 110 A1/A2/A3 | 1984-1986 | 603 | 603G | 602 | 602G | ||||||||||
KLT 160 A1 | 1985 | 603 | 603G | 602 | 602G | ||||||||||
KLF 185 A1/A1A Bayou | 1985 | N/A | N/A | 706 | 706G | ||||||||||
KLF 185 A2/A3/A4 Bayou | 1986-1988 | 705 | 705 | 705G | 705G | 706 | 706G | ||||||||
KLT 185 A1/A2 | 1986-1987 | 603 | 603G | 602 | 602G | ||||||||||
KLT 200 A1-A4/A4A | 1981-1983 | 603 | 603G | 705 | 705G | ||||||||||
KLT 200 B1 | 1983 | 603 | 603G | 705 | 705G | ||||||||||
KLT 200 C1/C2 | 1983-1984 | 603 | 603G | 705 | 705G | ||||||||||
KLF 220 A1-A15 Bayou | 1988-02 | 705 | 705 | 705G | 705G | 706 | 706G | ||||||||
KLF 250 A1/A2/A3/A6F/A7F/A8F/A9F/AAF/ABF Bayou | 03-11 | 705 | 705 | 705G | 705G | 706 | 706G | ||||||||
KLT 250 A1/A2 | 1982-1983 | 603 | 603G | 705 | 705G | ||||||||||
KLT 250 C1/C2/C3 Prairie | 1983-1985 | 603 | 603G | 705 | 705G | ||||||||||
KLT 250 P1 Police | 1984 | 603 | 603G | 705 | 705G | ||||||||||
KSF 250 A1-A18 Mojave | 1987-04 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
KXF 250 A1/A2 Tecate | 1987-1988 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
KXT 250 A1 Tecate | 1984 | 705 | 705G | FA83X | FA83R | ||||||||||
KXT 250 A2 Tecate | 1985 | FA67X | FA67R | FA67SV | FA67X | FA67R | FA67SV | ||||||||
KXT 250 B1 Tecate | 1986 | FA67X | FA67R | FA67SV | FA67X | FA67R | FA67SV | ||||||||
KXT 250 B2 Tecate | 1987 | FA67X | FA67R | FA67SV | FA84X | FA84R | FA84SV | ||||||||
KAF 300 A1/B1/B2 | 1992-1995 | Mule 500 | 628 | 628 | 628G | 628G | 718 | 718 | N/A | ||||||
KAF 300 C1-C7 | 1997-03 | Mule 550 | 628 | 628 | 628G | 628G | 718 | 718 | N/A | ||||||
KEF 300 A1/A2/A3/A4/A5/A6 Lakota | 1995-00 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
KEF 300 B1/B2/B3 Lakota Sport | 01-03 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
KLF 300 A1/A2 Bayou | 1986-1987 | 717 | 717 | 717G | 717G | 706 | 706 | 706G | 706G | ||||||
KLF 300 B1-17 Bayou | 1988-04 | FA67X | FA67X | FA67R | FA67R | FA67SV | FA67SV | 706 | 706 | 706G | 706G | ||||
KLF 300 C1-C17 Bayou 4x4 | 1989-05 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | 710 | 710G | ||||||
KVF 300 A1-A4 4 x 4 Prairie | 99-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 710 | 710G | ||||||
KVF 300 B1-B4 2 x 4 Prairie | 99-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 710 | 710G | ||||||
KVF 300 Brute Force | 12-22 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
KVF 360 Prairie 360 4x4 | 03-12 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
KVF 360 B1/B2/B3/B6F/B7F/B8F/B9F Prairie 360 | 03-09 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
KVF 360 Prairie 360 4x4 Hardwoods Green HD | 03-11 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
KAF 400 B1 | 05 | Mule 600 | 718 | 718 | 718 | 718 | |||||||||
KAF 400 A1/C1 | 05 | Mule 610 4x4 | 718 | 718 | 718 | 718 | |||||||||
KAF 400 A6F/A7F/A8F/A9F/AAF | 06-10 | Mule 610 4x4 | 718 | 718 | 718 | 718 | |||||||||
KAF 400 ABF/ACF/ADF/AEF/AFF/AGF | 11-16 | Mule 610 4x4 | 718 | 718 | 719 | 719 | |||||||||
KAF 400 B6F/B7F/B8F/B9F/BAF/BBF/BCF/BDF/BEF/BFF/BGF | 06-16 | Mule 600 | 718 | 718 | 718 | 718 | |||||||||
KAF 400 C6F/C7F/C8F/C9F | 06-09 | Mule 610 4x4 Hardwoods Green HD | 718 | 718 | 718 | 718 | |||||||||
KAF 400 DAF/DBD/DCF/DDF/DEF/DFF/DFG | 10-16 | Mule 610 4x4 XC | 718 | 718 | 719 | 719 | |||||||||
KAF 400 FEF/FFF/FGF | 14-16 | Mule 610 4x4 XC - SE | 718 | 718 | 719 | 719 | |||||||||
KAF 400 EBF/ECF/EDF/EEF/EFF/EGF | 11-16 | Mule 610 4x4 XC Realtree/Camo | 718 | 718 | 719 | 719 | |||||||||
KAF 400 GGF | 16 | Mule 610 4x4 SE | 718 | 718 | 718 | 718 | |||||||||
KAF 400 JHF | 17-22 | Mule SX | 718 | 718 | 718 | 718 | |||||||||
KAF 400 HHF | 17-22 | Mule SX 4x4 | 718 | 718 | 718 | 718 | |||||||||
KAF 400 NHF | 17-22 | Mule SX 4x4 SE | 718 | 718 | 718 | 718 | |||||||||
KAF 400 KHF | 17-22 | Mule SX 4x4 XC | 718 | 718 | 718 | 718 | |||||||||
KAF 400 LHF | 17-22 | Mule SX 4x4 XC Camo | 718 | 718 | 718 | 718 | |||||||||
KAF 400 MHF | 17-22 | Mule SX 4x4 XC LE | 718 | 718 | 718 | 718 | |||||||||
KLF 400 B1-B7 Bayou 4 x 4 | 1993-99 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | 710 | 710G | ||||||
KSF 400 A1/A2/A3 KFX 400 | 03-05 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA137X | FA137R | FA137SV | |||||
KVF 400 A1/A2/B1 Prairie | 1997-98 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 710 | 710G | ||||||
KVF 400 C1-C4 4 x 4 Prairie | 99-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 710 | 710G | ||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
KAWASAKI | |||||||||||||||
KVF 400 D1-D4 2 x 4 Prairie | 99-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 710 | 710G | ||||||
KFX 450 R KSF 450 B8F/B9F/BAF/BBF/BCS/BDF/BEF | 08-14 | FA342R | FA349R | FA342SV | FA349SV | FA84X | FA84R | FA84SV | |||||||
KAF 620 H1/H2/H3 4x4 | 03-05 | Mule 3010 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 K1/K6F/K7F Trans 4x4 | 05-07 | Mule 3010 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 J1 Trans 4x4 | 05 | Mule 3010 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 Mule 4010 4x4 | 09-22 | Mule 4010 4x4 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 N9F | 09 | Mule 4010 4x4 Hardwoods Green | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 Mule 4000 | 09-22 | Mule 4000 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 Mule 4010 Trans 4x4 | 09-22 | Mule 4010 Trans 4x4 | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 S9F/SAF/SBF/SCF/SDF/SEF/SFF/SFG/SHF | 09-17 | Mule 4010 Trans 4x4 Hardwoods Green HD | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 TGF/TGF | 16-17 | Mule 4010 4x4 SE | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KAF 620 VGF/VHF | 16-17 | Mule 4010 Trans 4x4 SE | 719 | 719 | N/A | N/A | 720 | 720 | |||||||
KVF 650 A1/A2/B2 Prairie | 02-03 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KVF 650 D1/D6F/D7F/D8F/D9F/DAF/DBF Brute Force 4x4 | 05-11 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KVF 650 E1/E6F/E7F/E8F/E9F Brute Force 4x4 Hardwoods Green HD | 05-09 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KVF 650 F6F/F7F/F8F/F9F/FAF/FBF Brute Force 650 4x4i | 06-11 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 650 F9F Brute Force 4x4i | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 650 FCS/FBF Brute Force 650 4x4i | 12 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 650 G6F/G7F/G8F/G9F/GAF Brute Force 650 4x4i - Hardwood Green HD | 06-10 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 650 H7F/H8F Brute Force 4x4i | 07-08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KAF 700 KAF700AMFNN | 19-22 | TBC | TBC | TBC | TBC | FA377X | FA377X | FA377HH | FA377HH | ||||||
KSV 700 A1/B1 KFX 700 V Force | 04 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KVF 700 A2/A6F/A7F/A8F/A9F Prairie 700 4x4 KFX 700 | 04-09 | FA342R | FA349R | FA342SV | FA349SV | N/A | N/A | ||||||||
KVF 700 B2/B6F/C6F/B7F/B8F/B9F KFX 700 4x4 | 04-09 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KVF 700 D1/D6F Team Green Special Edition | 05-06 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
KRF 750 A8F/B8F Teryx 4x4 | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 C8F/D8F Teryx 4x4 LE | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 F8F Teryx 4x4 NRA Outdoors | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 Teryx 750 Fi 4x4 | 09-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 Teryx 750 Fi 4x4 LE | 09-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 L9F Teryx 750 Fi 4x4 LE Sport | 09 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 M9F Teryx 750 Fi 4x4 NRA Outdoors | 09 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 Teryx 750 Fi 4x4 Sport LE Sport | 10-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRF 750 TAF/VBF Teryx 750 Fi 4x4 SGE | 10-11 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRT 750 ACF/ADF Teryx 4 750 4x4 | 12-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRT 750 ACFA/ADFA Teryx 4 750 4x4 EPS | 12-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRT 750 CCF/CDF Teryx 4 750 4x4 EPS LE | 12-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KRT 750 DCF/DDF Teryx 4 750 4x4 EPS Realtree | 12-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 750 A1/A6F/A7F Brute Force 750 4x4i | 05-07 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
KAWASAKI | |||||||||||||||
KVF 750 B1/E8F/E9F Brute Force 750 4x4i Hardwoods Green HD | 05 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | N/A | |||||||
KVF 750 B1/E8F/E9F Brute Force 750 4x4i Hardwoods Green HD | 08-09 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 B6F/B7F/B7FA Brute Force 750 4x4I | 06-07 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 C6F/C7F/D8F/D9F/DAF/DBF Brute Force 750 4x4i | 05-11 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 E8FA/E9FA/EAF Brute Force 750 4x4i NRA Outdoors | 08-10 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 F8F/FAF/FBF Brute Force 750 4x4i | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 F8F/FAF/FBF Brute Force 750 4x4i | 10-11 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 GCF/GDF/GEF/GFFGGF/GHF Brute Force 750 4x4 i / EPS | 12-17 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 HCF/HDF/HEF/HFF/HGF/HHF Brute Force 750 4x4 i / EPS / Camo | 12-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 Brute Force 750 4x4 i / EPS | 12-22 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KVF 750 LCF/LDF/LEF/LFF/LGF/LHF Brute Force 750 4x4i | 12-17 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||||||||
KRF/KRT 800 BEF/BFF/FGF/FHF | 14-22 | Teryx | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 CEF/CFF/GGF/GHF | 14-22 | Teryx LE | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 CEF/CFF/GGF/GHF | 14-22 | Teryx S LE | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 DEF/DFF/HGF/HFF | 14-22 | Teryx Camo | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 BEF/BFF/FGF/FHF | 14-22 | Teryx4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 CEF/CFF/GGF/GHF | 14-22 | Teryx 4 LE | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 CEF/CFF/GGF/GHF | 14-22 | Teryx 4 S LE | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 DEF/DFF/HGF/HHF | 14-22 | Teryx 4 Camo | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KRF/KRT 800 DEF/DFF/HGF/HHF | 14-22 | Teryx4 S Camo | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |||||||
KAF 820 AFF/AGF/AHF Mule PRO - FXT | 15-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 BFF/BGF/BHF Mule PRO - FXT /EPS | 15-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 CFF/CGF/CHF Mule PRO - FXT /EPS LE | 15-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 DFF/DGF/DHF Mule PRO - FXT /EPS Camo | 15-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 EGF/EHF Mule PRO - FX | 16-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 FGF/FHF Mule PRO - FX/EPS | 16-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 GGF/GHF Mule PRO - FX/EPS LE | 16-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 HGF/HHF Mule PRO - FX/EPS Camo | 16-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 820 JGF/JHF Mule PRO - FXT Ranch Edition | 16-21 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | ||||
KAF 950 B1/B2/B3 | 03-05 | Mule 3010 Diesel | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 950 D8F | 08 | Mule 3010 Diesel 4x4 | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 950 E8F | 08 | Mule 3010 Trans 4x4 Diesel | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 950 F9F/FAF/FBF/FCF | 09-12 | Mule 4010 Diesel 4x4 | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 950 G9F/GAF/GBF/GCF | 09-12 | Mule 4010 Trans 4x4 Diesel | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 950 HAF M | 10 | Mule 4010 Trans 4x4 Diesel Realtree | 719 | 719 | N/A | 720 | 720 | ||||||||
KAF 1000 AGF/AHF - | 16-17 | Mule Pro DXT/ Diesel | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
KAF 1000 BGF/BHF - | 16-17 | Mule Pro DXT/Diesel EPS | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
KAF 1000 CGF/CHF - | 16-21 | Mule Pro DXT EPS LE/Diesel | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
KAF 1000 DGF/DHF - | 16-17 | Mule Pro DX /Diesel | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
KYMCO ATV | |||||||||||||||
KAF 1000 EGF/EHF - | 16-21 | Mule Pro DX EPS/Diesel | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
KAF 1000 FGF/FHF - | 16-17 | Mule Pro DX EPS LE/Diesel | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA686X | FA686X | FA686R | FA686R | |||
Teryx KRX 1000 | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx KRX 1000 eS | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx KRX 1000 Special Edition | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx KRX 1000 Trail Edition | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx 1000 2 Seat Teryx 1000 | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx 1000 2 Seat Camo Teryx 1000 Camo | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx 1000 2 Seat LE Teryx 1000 LE | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx4 1000 4 Seat Teryx4 1000 | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx4 1000 4 Seat Camo Teryx4 1000 Camo | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Teryx4 1000 4 Seat LE Teryx4 1000 LE | 20-21 | FA738R | FA738R | FA738SV | FA738SV | FA739R | FA739R | FA739SV | FA739SV | ||||||
Mxer Mongoose 50 | 04-08 | 2T | 346 | 346 | 346G | 346G | 307 | 307G | |||||||
Mongoose 50 | 08-09 | 4T Rear disc model | 346 | 346 | 346G | 346G | FA305X | FA305R | |||||||
Mongoose 70 | 07-16 | 4T | 346 | 346 | 346G | 346G | FA305X | FA305R | |||||||
Mongoose 70 S | 20-21 | 4T | 346 | 346 | 346G | 346G | FA305X | FA305R | |||||||
Mongoose 90 | 02-16 | 346 | 346 | 346G | 346G | FA305X | FA305R | ||||||||
Mongoose 90 R | 02-14 | Reverse Gear | 346 | 346 | 346G | 346G | FA305X | FA305R | |||||||
Mongoose 90 S | 20-21 | 346 | 346 | 346G | 346G | FA305X | FA305R | ||||||||
MXer 150 | 03-05 | 303 | 303 | 303G | 303G | FA305X | FA305R | ||||||||
MXU 150 | 05-14 | 303 | 303 | 303G | 303G | FA305X | FA305R | ||||||||
MXU 150 X | 20-21 | 303 | 303 | 303G | 303G | FA305X | FA305R | ||||||||
Mongoose KXR 250 | 04-09 | FA377X | FA377X | FA377R | FA377R | FA355/4X | FA355/4R | ||||||||
MXU 250 | 04-10 | FA377X | FA377X | FA377R | FA377R | FA355/4X | FA355/4R | ||||||||
Mongoose 270 Inc Euro | 20-21 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
MXU 270 | 16-20 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
MXU 270 i Euro | 20-21 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
Mongoose | 06-16 | FA377X | FA377X | FA377R | FA377R | FA355/4X | FA355/4R | ||||||||
MXU 300 | 05-21 | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | ||||||||
Maxxer 375 4 x 4 IRS | 10-12 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395R | FA395SV | |||||
MXU 375 4 x 4 IRS | 08-12 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395R | FA395SV | |||||
Maxxer 450 4 x 4 IRS | 11-16 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395R | FA395SV | |||||
MXU 450 4 x 4 IRS | 11-14 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395R | FA395SV | |||||
MXU 450 4 x 4 IRS LE | 11-14 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395R | FA395SV | |||||
MXU 450 i 450 i | 20-21 | FA395X | FA395X | FA395R | FA395R | FA395X | FA395R | ||||||||
MXU 450 i LE 450 i LE | 20-21 | FA395X | FA395X | FA395R | FA395R | FA395X | FA395R | ||||||||
MXU 450 I LE Prime 450 I LE Prime | 20-21 | FA395X | FA395X | FA395R | FA395R | FA395X | FA395R | ||||||||
MXU 500 4 x 4 | 07-09 | Carb models | FA377X | FA377X | FA377R | FA377R | FA377X | FA377X | FA377R | FA377R | |||||
MXU 500 4 x 4 IRS | 10-11 | Carb Models | FA600X | FA600X | FA600R | FA600R | FA600/2X | FA600/2X | FA600/2R | FA600/2R | |||||
MXU 500i IRS | 10-11 | All EFi Models | FA600X | FA600X | FA600R | FA600R | FA600/2X | FA600/2X | FA600/2R | FA600/2R | |||||
MXU 700i | 20-21 | All Models | FA600X | FA600X | FA600R | FA600R | FA600/2X | FA600/2X | FA600/2R | FA600/2R | |||||
UXV 450i | 15-21 | All EFi models | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | |||||||
UXV 500 4 x 4 | 08-21 | All Carb models | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | |||||||
UXV 500 I | 13-21 | All EFi models | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | |||||||
UXV 700i 4 x 4 | 14-21 | All models | FA377X | FA377X | FA377R | FA377R | FA377X | FA377R | |||||||
POLARIS | |||||||||||||||
Outlaw 50 | 08-18 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Predator 50 | 04-07 | (2 stroke) | 338 | 338 | 338G | 338G | 307 | 307G | |||||||
Scrambler 50 | 1985-1986 | (3 Wheeler) | 503 | 503G | FA40 | ||||||||||
Scrambler 50 | 01-03 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Outlaw 70 | 21-22 | TBC | TBC | TBC | TBC | TBC | |||||||||
Outlaw 90 | 07-16 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Predator 90 | 03-06 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Scrambler 90 X | 01-03 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Sportsman 90 | 01-16 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Outlaw 110 | 16-22 | 338 | 338 | 338G | 338G | 307 | 307G | ||||||||
Phoenix 200 | 05 | (AA/AB Model/Rear Drum Model) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | 306 | 306G | |||||
Phoenix 200 | 06-09 | (AC/AD Model and Following/Rear Drum Model) | FA83X | FA83X | FA83R | FA83R | 306 | 306G | |||||||
Phoenix 200 | 10-14 | (Rear Drum Model) | FA490R | FA490R | 306 | 306G | |||||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
Phoenix 200 Quadricycle Model | 05 | (EA/EB/Rear disc model) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA67X | FA67R | |||||
Phoenix 200 Quadricycle Model | 05-09 | (EC/ED Models/Rear disc model) | FA83X | FA83X | FA83R | FA83R | FA67X | FA67R | |||||||
Phoenix 200 Quadricycle Model | 10 | (Rear disc model) | FA490R | FA490R | FA67X | FA67R | |||||||||
Sawtooth 200 | 06-07 | (Rear Drum Model) | FA83X | FA83X | FA83R | FA83R | 306 | 306G | |||||||
Sawtooth 200 Quadricycle | 06 | (Rear Disc Model) | FA83X | FA83X | FA83R | FA83R | FA67X | FA67R | |||||||
Sawtooth 200 Quadricycle | 08 | (Rear Disc Model) | FA83X | FA83X | FA83R | FA83R | FA67X | FA67R | |||||||
250 2 x 4 / 4 x 4 | 1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
250 2 x 4 / 4 x 4 | 1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
250 Cyclone X | 1987 | 503 | 503 | 503G | 503G | FA40 | |||||||||
Big Boss 250 4 x 6 | 1989-1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 250 4 x 6 | 1989-1990 | Middle Axle Brake | FA159X | FA159R | FA159SV | ||||||||||
Big Boss 250 4 x 6 | 1991-1992 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 250 4 x 6 | 1991-1992 | Middle Axle Brake | FA159X | FA159R | FA159SV | ||||||||||
Big Boss 250 6 x 6 | 1991 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 250 6 x 6 | 1991 | Middle Axle Brake | FA159X | FA159R | FA159SV | ||||||||||
Big Boss 250 6 x 6 | 1992-1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 250 6 x 6 | 1992-1993 | Middle Axle Brake | FA159X | FA159R | FA159SV | ||||||||||
Trail Blazer 250 | 1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Blazer 250 | 1991-1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Blazer 250 | 1994-98 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Blazer 250 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Trail Blazer 250 Freedom | 01-04 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Trail Blazer 250 | 05-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Trail Boss 250 2 x 4 | 1985-1987 | 503 | 503 | 503G | 503G | FA40 | |||||||||
Trail Boss 250 | 1988-1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 250 | 1991-99 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 250 4 x 4 | 1987 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 250 2 x 4/4 x 4 | 1988-1989 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 250 2 x 4/4 x 4 | 1991-1992 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
300 2 x 4 / 4 x 4 | 1994-1995 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 300 6 x 6 | 1994 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 300 6 x 6 | 1994 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Hawkeye 300 2 x 4 | 06 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | ||
Hawkeye 300 2 x 4 | 08-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Hawkeye 300 4 x 4 | 06 | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | FA395X | FA395X | FA395R | FA395R | FA395SV | FA395SV | ||
Hawkeye 300 2 x 4/4 x 4 | 07 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
Sportsman 300 4 x 4 | 08-10 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Xplorer 300 4 x 4 | 1996-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Xpress 300/400 L | 1996-1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Xpress 300 2 x 4 | 98-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Hawkeye 325 2 x 4 | 15 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Magnum 325 2 x 4/4 x 4 Moose | 01 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Magnum 325 2 x 4 HDS | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Magnum 325 4 x 4 | 02 | (A02CD32AA/AB/AC) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | |||||
Magnum 325 4 x 4 HDS | 02 | (A02CD32FB) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | |||||
Sportsman 325 Ace | 14 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Sportsman 325 Ace EFi | 15 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Sportsman 325 Ace Euro | 14-15 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Sportsman 325 Ace HD | 15 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Trail Boss 325 | 01-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Xpedition 325 | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
330 ATP 4 x 4 | 04-05 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
Magnum 330 2 x 4/HDS | 03-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Magnum 330 4 x 4/HDS | 03-04 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Trail Boss 330 | 03-04 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Trail Boss 330 | 05-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Trail Boss 330 | 10-13 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Trail Blazer 330 | 08-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Trail Blazer 330 | 10-13 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 335 4 x 4 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Sportsman 335 /Worker 4 x 4 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
350 L 2 x 4 | 1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
350 L 4 x 4 | 1990 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
350 L 4 x 4 | 1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 350 L | 1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 350 L | 1993 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Sportsman 350 4 x 4 | 1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 350 L 2 x 4 | 1991-1993 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Trail Boss 350 L 4 x 4 | 1991 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
400 L 2 x 4 | 1994-1995 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
400 L 4 x 4 | 1994 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 400 L 6 x 6 | 1994-1995 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 400 L 6 x 6 | 1994-1995 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Big Boss 400 L 6 x 6 | 1996 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 400 L 6 x 6 | 1996 | Middle Axle Brake | FA273R | FA273R | |||||||||||
Big Boss 400 L 6 x 6 | 1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 400 L 6 x 6 | 1997 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Hawkeye 400 H.O. 2 x 4 | 13-14 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Scrambler 400 400 L 4 x 4 | 1995-1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Scrambler 400 400 4 x 4 | 98-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Scrambler 400 400 2 x 4 | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Sport 400 L | 1994-98 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Sport 400 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Sportsman 400 L 4 x 4 | 1994-1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Sportsman 400 | 01-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Sportsman 400 | 03 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 400 | 04 | (Code CH42AA/AE/AG) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | |||
Sportsman 400 | 04 | (Code CH42AQ/AR/AS/AT/AV) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | |||
Sportsman 400 HO 4 x 4 | 08-10 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Sportsman 400 HO 4 x 4 | 11-14 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Trail Blazer 400 | 03 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Xplorer 400 L 4 x 4 | 1995-98 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Xplorer 400 L 4 x 4 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Xplorer 400 4 x 4 | 01-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Xplorer 400 | 01-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Magnum 425 2 x 4 | 1995-98 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Magnum 425 4 x 4 | 1995-98 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Magnum 425 6 x 6 | 1996 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Magnum 425 6 x 6 | 1996 | Middle Axle Brake | FA273R | FA273R | |||||||||||
Magnum 425 6 x 6 | 1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Magnum 425 6 x 6 | 1997 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Xpedition 425 4 x 4 | 00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Outlaw 450 S | 08 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159R | ||||||
Outlaw 450 MXR | 09-10 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159R | ||||||
Sportsman 450 | 06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 450 | 07 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 450 HO HO | 17-20 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 450 HO HO | 21-22 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
455cc Diesel 4 x 4 EBS | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
455cc Diesel | 01 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
500 ATP HO 4 x 4 | 04-05 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
500 ATV Pro 4 x 4 PPS | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Big Boss 500 6 x 6 | 98-99 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Big Boss 500 6 x 6 | 98-99 | Middle Axle Brake | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | |||||||
Magnum 500 4 x 4 | 99-00 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Magnum 500 | 01 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Magnum 500 2 x 39906 x 4 HDS | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Magnum 500 4 x 4 HDS | 02-03 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Outlaw | 06-07 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Predator 500/TLD | 03-07 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Scrambler 500 2 x 4 | 01-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Scrambler 500 2 x 4 | 07-08 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Scrambler 500 4 x 4 | 1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Scrambler 500 4 x 4 | 98-04 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Scrambler 500 4 x 4 | 05-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Scrambler 500 4 x 4 | 10-12 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 500 4 x 4 | 1996 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Sportsman 500 4 x 4 | 1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
Sportsman 500 /Worker 4 x 4 EBS/500 RSE | 98-02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA270X | FA270R | FA270SV | |||||
Sportsman 500 HO/EFI Demand Drive | 03-04 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 EFI/HO | 04-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 EFI/HO | 07-08 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 HO | 08 | (Built up to 15/12/2008) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | |||||
Sportsman 500 HO | 09-13 | (Built from 16/12/2008) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | ||||
Sportsman 500 X2 | 06-08 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 6 x 6 | 00-08 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA313R | FA313SV | ||||||
Sportsman 500 X 2 EFI | 07-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Sportsman 500 Forest | 12 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 Touring H.O. | 08-11 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
Sportsman 500 Touring H.O. | 11-13 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA354R | |||||||
Sportsman 500 EFI Quad H.O. | 08-11 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Sportsman 500 XP | 09 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Xplorer 4 x 4 | 1997 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA232X | FA232R | FA232SV | |||||
Xplorer S | 08-10 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159R | ||||||
Outlaw IRS | 08-11 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159R | ||||||
Sportsman 550 550 | 11-13 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 550 550 EPS | 10-14 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 550 550 Forest | 10-12 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 550 550 XP EPS | 09-11 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 550 550 X2 | 10-14 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 550 550 Touring EPS | 10-14 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 570 Ace | 15-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Sportsman 570 570 Ace Euro | 15-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Sportsman 570 570 Efi | 11-20 | (Inc EPS Models) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | ||||
Sportsman 570 570 | 21-22 | A21SEA57A1/A3/A5/A7/A9 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | ||||
Sportsman 570 570 EFI X2 | 15-21 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 570 Forest Tracker Efi/EPS | 15 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 570 Touring EFi | 14-21 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 570 Touring Tractor Efi EPS | 16-21 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 6X6 | 17-21 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 570 6X6 Tractor | 17-21 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475X | FA475R | FA475SV | |||||
Sportsman 600 600 4 x 4 | 03-05 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 700 700 4 x 4/EFI | 02-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 700 700 MV | 05-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 700 700 EFI | 07 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 700 700 X 2 | 08 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159R | FA159SV | |||||
Sportsman 800 EFI | 05-06 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 800 EFI | 08 | (Built up to 15/12/2008) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | |||||
Sportsman 800 EFI | 09 | (Built up after 16/12/2008) | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | |||||
Sportsman 800 EFI | 10-13 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA475R | FA475SV | ||||||
Sportsman 800 X 2 EFI | 07-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
Sportsman 800 EFI Intl/HO | 07-11 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314SV | ||||||
Sportsman 800 | 12-14 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 800 Forest | 12 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 800 Touring/EFI | 08-09 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
Sportsman 800 Big Boss/EFI 6 x 6/EFI | 09-14 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA314R | FA314R | FA314SV | FA314SV | ||||
Forest 850 | 15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | ||||
Scrambler 850 | 15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | ||||
Sportsman 850 Touring EPS | 10-13 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 850 Touring H.O. EPS | 13-15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 850 Forest | 12 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Scrambler 850 XP H.O. | 13-15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 850 XP | 09-13 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 850 XP EPS | 09-13 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Sportsman 850 XP H.O. EPS | 13-15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475R | FA475SV | |||||
Forest 1000 | 15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Scrambler 1000 | 15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Scrambler 1000 XP | 15 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
Scrambler 1000 XP | 15-21 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA456X | FA456X | FA456R | FA456R | ||||
Sportsman 1000 MD/XP | 15-19 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Sportsman 1000 XP S 55 | 20-21 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA456X | FA456X | FA456R | FA456R | TBC | TBC | ||
Sportsman 1000 XP Tractor | 16-21 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Sportsman 1000 Touring XP | 15-20 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Sportsman 1000 Touring Tractor | 16-22 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
Sportsman 1000 XP High Lifter | 19 | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
ACE 570 R08 All models | 17-20 | A17DAA57A5/A7 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
ACE 570 EFI EURO R09 | 17-20 | A17DAA57F5 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
1000 General EPS | 16-20 | (2 Seat) | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
1000 General EPS | 17-20 | (2 Seat) | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
1000 General 4 EPS | 17-20 | (4 Seat) | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 1000 Sport | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 1000 Premium | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 1000 Deluxe | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 1000 Deluxe Ride Command Edition | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General XP 1000 Deluxe | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General XP 1000 Deluxe Ride Command Edition | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General XP 1000 Trailhead Edition | 21-22 | 2 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 4 1000 Premium | 21-22 | 4 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 4 1000 Deluxe Ride Command Edition | 21-22 | 4 seat | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
General 4 XP 4 1000 Deluxe | 21-22 | 4 seat | FA680R | FA680R | FA680SV | FA680SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |||
General 4 XP 4 1000 Deluxe Ride Command Edition | 21-22 | 4 seat | FA680R | FA680R | FA680SV | FA680SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |||
General 4 XP 4 1000 Trailhead Edition | 21-22 | 4 seat | FA680R | FA680R | FA680SV | FA680SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |||
Brutus HD HDPTO | 13-17 | (R03) | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | |||
325 Ranger ETX | 15-16 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
400 Ranger | 10-14 | (All Models) | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
499 Ranger | 17 | (All Models) | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
500 Ranger 2 x 4/4 x 4 | 06-07 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
500 Ranger 4 x 4 EFi | 06-07 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
500 Ranger 4 x 4 EFi | 08-10 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
500 Ranger 4 x 4 EFi | 11-13 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
500 Ranger Carb 2 x 4 | 08-09 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
500 Ranger EFi 4 x 4 H.O. | 09-11 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
500 Ranger Crew | 11-13 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
500 Ranger | 17-20 | 2WDHDPE ETX | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
500 Ranger | 21-22 | R21MAA50BJ7 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
Ranger 1999 models | 99 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA273R | |||||||
Ranger 2 x 4 / 4 x 4 | 04-05 | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||||
Ranger 6 x 6 | 04-05 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
Ranger TM | 04-05 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
TM Ranger | 06 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
Ranger XP | 05 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
570 Ranger EFi | 14-20 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
570 Ranger Crew EFi | 14-15 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
570 Ranger R16 | 16 | R16MA57A1/4/A9/L1 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
570 Ranger | 17-20 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
570 Ranger R18R FULL SIZE R06 | 18-20 | R18RCA57A1/A4/B4/B1 FULL SIZE (R06) | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
570 Ranger R18R FULL SIZE R06 | 19-20 | R19RCA57A1/A4/B1/B4 FULL SIZE (R03) | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | |||||
570 Ranger Full Size R21 | 21-22 | R21CCA57A1/A7 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
570 FS Ranger Crew R17RD R08 | 17-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 FS Ranger Crew R17RD R08 | 16-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 FS Ranger Crew R17RD R08 | 19-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 Ranger Crew EPS MD R18RN R04 | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
570 Ranger Crew Efi R17RN R10 | 17-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 Ranger Crew R18RNA R03 | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 Ranger Crew R19RNA R02 | 16-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
570 Ranger SP | 22 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
570 Ranger SP | 22 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
570 Ranger SP North Star Edition | 22 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
700 Ranger 6 x 6 EFi | 06-09 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
700 Ranger XP 4 x 4 | 06 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
700 Ranger 4 x 4 EFi/LE | 07 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
700 Ranger 4 x 4 EFi | 09 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
700 Ranger Crew EFi 4 x 4 | 09 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
700 Ranger 6 x 4 EFi | 08 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
700 Ranger XP 4 x 4 | 08 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Electric Ranger EV | 10-15 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
RANGER EV MD R18RMAE4N8 R02 | 18-19 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RANGER EV LIION R17RMAL4G9 R08 | 16-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RANGER EV LIION R18RMAL4G9 R03 | 16-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RANGER EV R17RMAE4G8/G9/N8/MAE4H8 R12 | 16-17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RANGER EV R18RMAE4G8/G9 R03 | 16-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
800 Ranger | 10-12 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
800 Ranger EFi | 13-14 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
800 Ranger Mid Size | 13-14 | FA354R | FA354R | FA354SV | FA354SV | FA354R | FA354R | FA354SV | FA354SV | ||||||
800 Ranger XP | 10-12 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
800 Ranger 6 x 6 | 10-17 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
800 Ranger Crew | 10-14 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
800 Ranger 6X6 17RAA MD Poland R02 | 17-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656R | FA656R | FA656SV | FA656SV | ||||
900 Ranger Crew | 10-15 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
900 D Crew Ranger Diesel | 13-14 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
900 D Ranger Diesel | 11-14 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
900 Ranger XP | 13-14 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
900 Ranger XP R27 | 15-19 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
900 Ranger R18RV | 16-19 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
RANGER CREW 900XP 6P SP R18RVA87A1/B1/E87A9/B9 R10 | 18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||||||||
RANGER CREW 900 EPS R19RVA87A1/B1/EA9/AH/B9/BH R03 | 19 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||||||||
RANGER CREW 900 6P SP R17RVA87A1/B1/E87A9/B9 R14 | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||||||||
Ranger 902D EU Tractor R07 | 19-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | ||||
1000 Ranger Diesel | 15-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | ||||
1000 Ranger Diesel Crew | 15 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
Ranger Crew 1000 XP PS MD R18RV R08 | 18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger Crew 1000XP PS R17RV_99 ALL OPTIONS R32 | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger Crew 1000XP PS R18RV_99 ALL OPTIONS R09 | 18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger Crew 1000XP 6P,PS,NB,MD R08 R17RVE99NY | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger Crew 1000 PS R18RVU99AS R10 | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger 1000 Diesel Poland R18RTED1F1/SD1C1 R07 | 17-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
Ranger 1000 Diesel EU R17RTED1F1/SD1C1 R14 | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | ||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
Ranger 1000 Diesel Crew R17RVAD1A1 R16 | 17-18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | ||||||
Ranger Crew 1000 49/50S Factory choice ,R04, R06 R08, R11, | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | ||||
Ranger 1000 PS Crew Inc EU,EPS, HD,MD R03, R09,R13, R20 | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | ||||
Ranger 1000XP PS NSTR, Crew Mud R02,R15,R17,R18 | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | ||||
Ranger 1000 Diesel R17 | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | ||||||
Ranger 1000 Diesel R17 | 18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | ||||||
PPS LUH 6 x 6 | 02 | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | FA313R | FA313SV | ||||||
Ranger Various Models 05-16 | 05-16 | Handbrake Pads | FA659X | ||||||||||||
MILITARY RZR2 XP MV 1000 TURBO DIESEL R01 M17VDED1MA/EX | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
MILITARY RZR2 XP MV 1000 TURBO DIESEL NELO R01 M18VDED1MN | 18 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
MILITARY RZR4 XP MV 1000 TURBO DIESEL R04 M17VFED1MA/EX | 17 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR 170 | 09-15 | FA490R | FA490R | FA489R | |||||||||||
RZR 200 | 21-22 | FA490R | FA490R | FA489R | |||||||||||
RZR 570 | 12-13 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159X | FA159R | FA159R | FA159SV | FA159SV | ||
RZR 570 | 14-19 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA456X | FA456X | FA456R | FA456R | ||||
RZR 570 Trail Premium | 20-21 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
RZR Trail 570 | 20-21 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
RZR Trail | 20-21 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
RZR Trail S | 20-21 | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA475X | FA475X | FA475R | FA475R | FA475SV | FA475SV | ||
RZR 800 800 | 08-14 | (Inc EPS Models) | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | FA159X | FA159X | FA159R | FA159R | |||
RZR-4 800 EPS | 12 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA354R | FA354R | FA354SV | FA354SV | ||||
RZR 900 | 15-20 | (50" Inch All Options) | FA657X | FA657X | FA657R | FA657R | FA657SV | FA657SV | FA456X | FA456X | FA456R | FA456R | |||
RZR-S 900 | 15-20 | (60" Inch All Options) | FA657X | FA657X | FA657R | FA657R | FA657SV | FA657SV | FA456X | FA456X | FA456R | FA456R | |||
RZR 900 XP | 11-14 | (Inc EPS Models) | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA354R | FA354R | FA354SV | FA354SV | |||
RZR 900 4 XP | 12-16 | All Options Inc Military | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 4 900 | 17 | Z17VCE87AB/AK/AM (R05) | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 4 900 | 16-18 | Z18VCE87BK/BU/BR/LU (R05 R12) | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | |||
RZR 1000 60 Inch PS EU/Tractor/Zug R01,R06,R07,R09 | 17-20 | (60" Inch All Options) | FA657X | FA657X | FA657R | FA657R | FA657SV | FA657SV | FA456X | FA456X | FA456R | FA456R | FA456SV | FA456SV | |
RZR 1000 XP | 16-17 | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | FA452X | FA452X | FA452R | FA452R | FA452SV | FA452SV | ||
RZR 1000 XP | 12-19 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP 1000 Sport | 21-22 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP 1000 Premium | 21-22 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP 1000 High Lifter | 21-22 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP 41000 High Lifter | 21-22 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR 1000 Z19VCE99AM | 18-20 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA456X | FA456X | FA456R | FA456R | ||||
RZR XP Turbo | 16 | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||||
RZR XP 4 Turbo | 16 | 4 Seater | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |||
RZR RS1 RS1 | 18-22 | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR Turbo 4 Turbo 4 | 19-20 | 4 Seater | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 1000 XP 4 | 19-20 | 4 Seater | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 1000 XP 4 | 18 | 4 Seater | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 1000 XP 4 | 16-17 | 4 Seater | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 1000 XP 4 MD | 17 | 4 Seater | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR 1000 XP 4 MD | 18-19 | 4 Seater | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |
RZR Pro XP Turbo | 20-21 | (Z20A_92 & Z21RAC) | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | |
RZR Pro XP Sport Turbo | 21-22 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | ||
RZR Pro XP Premium Turbo | 21-22 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | ||
RZR Pro XP Ultimate Turbo | 21-22 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | ||
RZR Pro XP 4 Sport Turbo | 21-22 | 4 Seater | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | |
RZR Pro XP 4 Premium Turbo | 21-22 | 4 Seater | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | |
RZR Pro XP 4 Ultimate Turbo | 21-22 | 4 Seater | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | TBC | TBC | TBC | TBC | FA656SV | FA656SV | |
RZR XP Turbo | 17-20 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP Turbo Latin | 18 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
POLARIS | |||||||||||||||
RZR XP Turbo MD | 17-18 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP Turbo S | 18-20 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP Turbo Tractor | 17-18 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP4 Turbo | 17-22 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP4 Turbo Intl | 17 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR XP4 Turbo MD | 18-20 | FA680X | FA680X | FA680R | FA680R | FA680SV | FA680SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | ||
RZR Turbo S 4 | 21-22 | 4 Seater | FA728R | FA728R | FA728SV | FA728SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |||
RZR Turbo S 4 Velocity | 21-22 | 4 Seater | FA728R | FA728R | FA728SV | FA728SV | FA656X | FA656X | FA656R | FA656R | FA656SV | FA656SV | |||
RZR Turbo Turbo S | 19-22 | FA728R | FA728R | FA728SV | FA728SV | ||||||||||
RZR Turbo Turbo S Velocity | 19-22 | FA728R | FA728R | FA728SV | FA728SV | ||||||||||
SUZUKI | |||||||||||||||
LT 50 E/F/G/H | 1984-1987 | N/A | N/A | 613 | 613G | ||||||||||
LT-A 50 Quadsport | 02-05 | 614 | 614 | 614G | 614G | 604 | 604G | ||||||||
LTZ 50 Quadsport | 06-11 | 614 | 614 | 614G | 614G | 604 | 604G | ||||||||
LTZ 50 | 17-22 | 614 | 614 | 614G | 614G | 604 | 604G | ||||||||
LT 80 H/J/K/L/M/N/P/R/S/T/V/W/X/Y/K1-K6 | 1987-06 | 614 | 614 | 614G | 614G | 618 | 618G | ||||||||
LT-Z 90 K7/K8/K9/ZK9/L4/L5/L6 Quadsport | 07-11 | 604 | 604 | 604G | 604G | 618 | 618G | ||||||||
LT-Z 90 K7/K8/K9/ZK9/L4/L5/L6 Quadsport | 14-18 | 604 | 604 | 604G | 604G | 618 | 618G | ||||||||
LT 125 D | 1983 | N/A | N/A | 621 | 621G | ||||||||||
LT 125 E | 1984 | N/A | N/A | 605 | 605G | ||||||||||
LT 125 | 1985-1987 | N/A | N/A | 621 | 621G | ||||||||||
LT 160 | 1989-1992 | 624 | 624 | 624G | 624G | 605 | 605G | ||||||||
LT-F 160 | 1991-01 | 624 | 624 | 624G | 624G | 605 | 605G | ||||||||
LT-F 160 | 03 | 624 | 624 | 624G | 624G | 605 | 605G | ||||||||
LT 160 Quadsport | 03-04 | 624 | 624 | 624G | 624G | 605 | 605G | ||||||||
LT 185 | 1984-1987 | N/A | N/A | 605 | 605G | ||||||||||
LT 230 GEF/GEG | 1985-1986 | 625 | 625 | 625G | 625G | 605 | 605G | ||||||||
LT 230 EH Early | 1986 | axle 64710 22A00 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | ||||
LT 230 EH Late | 1986 | axle 64710 22A01 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | ||||
LT 230 | 1987-1993 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
LT 230 | 1985-1986 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | N/A | FA84/3R | ||||||
LT 230 | 1987 | SH up to F. no. 2108531 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | N/A | FA84/3R | |||||
LT 230 | 1987-1988 | SH from F. no. 2108532/SJ | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | N/A | FA84/3R | |||||
LT-F 230 G/H | 1986-1987 | 625 | 625 | 625G | 625G | 605 | 605G | ||||||||
LT 250 EFF/EFG | 1985-1986 | 625 | 625 | 625G | 625G | 634 | 634G | ||||||||
LT-F 250 250 Quadrunner | 1988-01 | 628 | 628 | 628G | 628G | 629 | 629G | ||||||||
LT 250 | 1989-1990 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA84X | FA84R | FA84SV | |||||
LT 250 | 1985-1986 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | N/A | FA84/3R | ||||||
LT 250 | 1987-1992 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA137X | FA137R | FA137SV | |||||
LT-F 250 Quadrunner | 99-02 | 628 | 628 | 628G | 628G | 629 | 629G | ||||||||
LT-F 250 Ozark | 02-14 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 636 | 636G | ||||||
LT-Z 250 Quadsport | 04-11 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 636 | 636G | ||||||
LT-4WD 250 Quadrunner | 1987-1997 | 628 | 628 | 628G | 628G | 629 | 629G | ||||||||
LT-F 250 4WD V/W Quadrunner 250 Quadrunner | 1997-98 | 628 | 628 | 628G | 628G | 629 | 629G | ||||||||
LT-F 250 4WD V/W Quadrunner 4WD | 1997-98 | 250cc | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
LT 300 | 1987-1989 | 625 | 625 | 625G | 625G | 634 | 634G | ||||||||
LT-F 300 King Quad 300 | 1991-98 | 633 | 633 | 633G | 633G | 634 | 634G | ||||||||
LT-F 300 King Quad | 99-01 | 633 | 633 | 633G | 633G | 634 | 634G | ||||||||
LT-F 300 FK2 King Quad | 02 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | 634 | 634G | ||||||
LT-A 400 Eiger | 02-07 | 4WD Auto | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
LT-A 400 FK8 King Quad | 08-18 | Auto 4WD | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | |||||
LT-A 400 Eiger | 02-04 | Auto 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
LT-A 400 Eiger | 06-18 | Auto 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
LT-A 400 King Quad 400 AS | 08-18 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-A 400 King Quad 400 AS Camo | 09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-A 400 King Quad 400 AS Anniversary Edition | 08-09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-A 400 King Quad 400 Asi | 11-22 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-A 400 King Quad 400 Asi Camo | 11-22 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-F 400 | 02-07 | Eiger 4WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
SUZUKI | |||||||||||||||
LT-F 400 K2 Eiger | 02 | Manual 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | |||||
LT-F 400 | 03-08 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 606 | 606G | ||||||
LT-F 400 K8 | 08 | Manual 2WD | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | |||||
LT-F 400 King Quad 400 FS | 08-10 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-F 400 King Quad 400 FS Camo | 08-09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-F 400 King Quad 400 FS Anniversary Edition | 09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-F 400 King Quad 400 FSi | 11-16 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-F 400 King Quad 400 FSi Camo | 11-16 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | 606 | 606G | ||||||
LT-Z 400 Quadsport | 03-14 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA137X | FA137R | FA137SV | |||||
LT-A 450 King Quad 450 AXi Camo | 07-09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 450 King Quad 450 AXi Limited | 08-09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 450 King Quad 4x4 Axi | 07-10 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-R 450 | 06-11 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA137X | FA137R | FA137SV | |||||
LT-R 450 Quadracer Limited Edition | 08-10 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA137X | FA137R | FA137SV | |||||
LT 500 | 1987-1990 | FA128X | FA128X | FA128R | FA128R | FA128SV | FA128SV | FA137X | FA137R | FA137SV | |||||
LT-F 500 Quadrunner | 98-02 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | 634 | 634G | ||||||
LT-F 500 Vinson Quadrunner | 03-07 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA372X | FA372R | FA372SV | |||||
LT-A 500 FY/FK1 Quadmaster | 00-01 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | 634 | 634G | ||||||
LT-A 500 FK2 Vinson 4WD | 02-07 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA317X | FA317R | FA317SV | |||||
LT-A 500 Vinson 4WD | 03-07 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA372X | FA372R | FA372SV | |||||
LT-A 500 King Quad 500 AXi | 09 | Power Steering Limited | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
LT-A 500 King Quad 500 Axi | 13 | Power Steering Limited | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
LT-A 500 King Quad 500AXi | 11-22 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 500 King Quad 500 AXi | 09-16 | Power Steering Camo | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
LT-A 500 King Quad 500AXi Camo | 11-16 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 500 King Quad 500 AXi | 09-22 | Power Steering | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
QUV 620 FK5 Side x Side | 05 | 719 | 719 | N/A | 720 | 720 | N/A | ||||||||
LT-A 700 King Quad | 05-07 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-V 700 Twin Peaks 700 4x4 | 04-05 | FA342R | FA349R | FA342SV | FA349SV | N/A | |||||||||
LT-A 750 King Quad 750 AXi | 08-22 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 King Quad 750 AXi Camo | 08-16 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 King Quad 750 AXi Limited | 08-09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 King Quad 750 AXi Limited | 14 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 XRK9 King Quad 750 AXi Rockstar Edition | 09 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 King Quad 750 AXi Power Steering | 09-16 | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | |||||||
LT-A 750 King Quad 750 Axi | 09 | Power Steering Limited | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
LT-A 750 King Quad 750 AXi | 15-16 | Power Steering Limited | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
LT-A 750 King Quad750 AXi | 09-22 | Power Steering Camo & SE+ | FA413X | FA414X | FA413R | FA414R | FA413SV | FA414SV | N/A | ||||||
YAMAHA | |||||||||||||||
YFM 50 Raptor | 04-07 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
YFZ 50 Y | 17-20 | 346 | 346 | 346G | 346G | 307 | 307G | ||||||||
YF 60 S | 1986 | N/A | N/A | 518 | 518G | ||||||||||
YT 60 | 1984-1985 | Tri-Zinger | N/A | N/A | 518 | 518G | |||||||||
YFM 80 | 1985-1986 | Moto 4 | N/A | N/A | 506 | 506G | |||||||||
YFM 80 | 1987-1988 | 518 | 518 | 518G | 518G | 506 | 506G | ||||||||
YFM 80 Badger | 1992-01 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
YFM 80 Raptor | 02-08 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
YFM 80 Grizzly | 05-08 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
YFM 90 RY Raptor | 09 | No Rear Parking Brake | 536 | 536 | 536G | 536G | FA83X | FA83R | |||||||
YFM 90 Raptor | 10-13 | With Rear Parking Brake | 536 | 536 | 536G | 536G | FA67X | FA67R | FA67SV | ||||||
YFM 90 Raptor 90 | 16-17 | 346 | 346 | 346G | 346G | 307 | 307G | ||||||||
YFM 100 Champ | 1987-1988 | 518 | 518 | 518G | 518G | 506 | 506G | ||||||||
YFM 100 Champ | 1989-1991 | 503 | 503 | 503G | 503G | 506 | 506G | ||||||||
YFA1 Breeze | 1989-1991 | 503 | 503 | 503G | 503G | 506 | 506G | ||||||||
YFA1 Breeze | 1992-04 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
YAMAHA | |||||||||||||||
YFM 125 Grizzly | 04-13 | 503 | 503 | 503G | 503G | 527 | 527G | ||||||||
YFM 125 Raptor | 11-13 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YT 125 | 1980-1982 | Tri Moto | N/A | N/A | FA20X | N/A | |||||||||
YT 125 | 1982-1985 | Tri Moto | N/A | N/A | FA21X | FA21R | FA21SV | ||||||||
YT 175 | 1982-1983 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YFM 200 | 1985-1989 | Moto 4 | 503 | 503 | 503G | 503G | FA21X | FA21R | FA21SV | ||||||
YFS 200 Blaster | 1988-02 | 503 | 503 | 503G | 503G | FA155X | FA155R | ||||||||
YFS 200 Blaster | 03-06 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YTM 200 | 1983-1985 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YTM 200 | 1983-1984 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YTM 200 ERN | 1985 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YFM 225 | 1986-1988 | Moto 4 | 503 | 503 | 503G | 503G | FA21X | FA21R | FA21SV | ||||||
YTM 225 | 1983-1985 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YTM 225 | 1985-1986 | Tri Moto | 503 | 503G | FA21X | FA21R | FA21SV | ||||||||
YFU1TW Pro Hauler | 1989 | 528 | 528 | 528G | 528G | 523 | 523 | 523G | 523G | ||||||
YFU1W Pro Hauler | 1989 | 528 | 528 | 528G | 528G | 523 | 523 | 523G | 523G | ||||||
YFB 250 Timberwolf | 1992-1994 | 503 | 503 | 503G | 503G | 528 | 528G | ||||||||
YFB 250 | 1995-98 | 528 | 528 | 528G | 528G | 528 | 528G | ||||||||
YFB 250 Timberwolf | 1994-00 | 528 | 528 | 528G | 528G | 528 | 528G | ||||||||
YFM 250 | 1989-1991 | 528 | 528 | 528G | 528G | FA21X | FA21R | FA21SV | |||||||
YFM 250 Bear Tracker | 99-00 | 528 | 528 | 528G | 528G | 528 | 528G | ||||||||
YFM 250 Beartracker | 01-04 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 528 | 528G | ||||||
YFM 250 Bruin | 05-06 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | ||||||
YFM 250 Big Bear | 07-09 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | ||||||
YFM 250 Raptor | 08-13 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA84X | FA84R | FA84SV | |||||
YFM 250 RSPX/RSEY Sp Ed | 08-09 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA84X | FA84R | FA84SV | |||||
YFM 250 RSPXC Special Edition Custom | 08 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA84X | FA84R | FA84SV | |||||
YFM 250 RSPA Special Edition | 11 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA84X | FA84R | FA84SV | |||||
YTZ 250 | 1985-1986 | Tri Moto | FA101X | FA101R | FA101X | FA101R | |||||||||
YFM 300 Grizzly | 12-13 | FA83X | FA83X | FA83R | FA83R | FA67X | FA67R | FA67SV | |||||||
YFM 350 | 1987-1988 | 503 | 503 | 503G | 503G | FA21X | FA21R | FA21SV | |||||||
YFM 350 | 1989-1992 | 528 | 528 | 528G | 528G | FA21X | FA21R | FA21SV | |||||||
YFM 350 | 1993-1995 | 528 | 528 | 528G | 528G | FA21X | FA21R | FA21SV | |||||||
YFM 350 Wolverine | 1995-05 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YFM 350 V Wolverine | 06 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 350 Grizzly 2x4 | 07-11 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 350 Grizzly Auto IRS 4x4 | 07-11 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
YFM 350 Grizzly Auto 4x4 | 06-13 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | ||||||
YFM 350 Big Bear | 1987-1988 | 520 | 520 | 520G | 520G | FA21X | FA21R | FA21SV | |||||||
YFM 350 Big Bear | 1989-1995 | 524 | 524 | 524G | 524G | FA21X | FA21R | FA21SV | |||||||
YFM 350 Big Bear | 1996-98 | 524 | 524 | 524G | 524G | 516 | 516G | ||||||||
YFM 350 XT | 1987 | FA101X | FA101X | FA101R | FA101R | FA84X | FA84R | FA84SV | |||||||
YFM 350 Big Bear | 99 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | ||||||
YFM 350 XU Warrior | 1988 | FA101X | FA101X | FA101R | FA101R | FA84X | FA84R | FA84SV | |||||||
YFM 350 XW Warrior | 1989 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YFM 350 Warrior | 1990-04 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YFM 350 | 1996-98 | 524 | 524 | 524G | 524G | 516 | 516G | ||||||||
YFZ 350 Banshee | 1987-1989 | FA101X | FA101X | FA101R | FA101R | FA84X | FA84R | FA84SV | |||||||
YFZ 350 Banshee | 1990-06 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA84X | FA84R | FA84SV | |||||
YFM 350 | 99 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | ||||||
YFM 350 Bruin 4x4 Auto | 04-06 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | ||||||
YFM 350 Bruin 2x4 Auto | 04-06 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | ||||||
YFM 350 Raptor | 04-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
YFM 350 Wolverine | 06-09 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFP 350 U Terrapro | 1988 | 528 | 528 | 528G | 528G | 523 | 523 | 523G | 523G | ||||||
YFM 400 Kodiak | 1993-98 | 524 | 524 | 524G | 524G | 516 | 516G | ||||||||
YFM 400 FWBL Kodiak | 99 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 528 | 528G | ||||||
YFM 400 2x4 Big Bear | 03-04 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | ||||||
YFM 400 FAR Kodiak Auto | 03 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | ||||||
YFM 400 Kodiak | 00-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | |||||
YFM 400 Kodiak 4x4/Hunter | 00-02 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | |||||
YFM 400 Kodiak | 00-01 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 400 Big Bear | 00-02 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | |||||
YFM 400 S Big Bear | 04 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | ||||||
YFM 400 Big Bear | 00-01 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | ||||||
YFM 400 Big Bear Real Tree-tra | 00-04 | 4WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | |||||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
YAMAHA | |||||||||||||||
YFM 400 Big Bear | 05-06 | 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 400 Big Bear Buckmaster | 01 | 4WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 516 | 516G | |||||
YFM 400 Kodiak | 03-04 | 2WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 400 FAS Kodiak | 04 | 4WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 400 Kodiak | 05-06 | Auto 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 400 Grizzly | 07-08 | 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 400 Big Bear | 04-06 | 4WD | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | 532 | 532G | |||||
YFM 400 Big Bear 400 Hunter IRS | 07-10 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
YFM 400 FBEW Big Bear 400 IRS Exploring Edition | 07 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
YFM 400 Big Bear 4WD IRS | 08-12 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
YFM 450 Kodiak | 03-04 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | |||||
YFM45KDXNG Kodiak | 21-22 | FA84X | FA84X | FA84R | FA84R | ||||||||||
YFM 450 Grizzly | 07-08 | 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 450 Wolverine | 06-10 | Auto 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 450 Grizzly IRS | 07 | Auto 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 450 Grizzly | 08-13 | Auto/4x4/EPS | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | ||||||
YFM 450 Grizzly 450 | 11-13 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | N/A | |||||||
YFM 450 Kodiak | 05-06 | Auto 4x4 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | ||||
YFM 450 FXSEW Wolverine Sport Special Edition | 07 | FA54X | FA54X | FA54R | FA54R | FA54SV | FA54SV | FA307X | FA307R | FA307SV | |||||
YFZ 450 LES Limited Edition | 04 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA84X | FA84R | FA84SV | |||||
YFZ 450 SET Special Edition | 05 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA84X | FA84R | FA84SV | |||||
YFZ 450 Bill Balance Edition | 06-07 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 Special Edition | 06-08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 | 04-05 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA84X | FA84R | FA84SV | |||||
YFZ 450 | 06-09 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 | 12-13 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 | 12-13 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA323X | FA323R | ||||||
YFZ 450 | 09-12 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 | 14-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFZ 450 | 14 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YXR 450 | 04-09 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 550 Grizzly FI | 09-14 | 4WD Auto | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 550 EPS Grizzly Fi | 09-14 | Auto | FA443X | FA444X | FA443X | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 600 Grizzly | 98-00 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 516 | 516G | ||||||
YFM 600 Grizzly/Hunter Edition | 01 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | 516 | 516G | ||||||
YFM 660 Raptor | 01-05 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA84X | FA84R | FA84SV | |||||
YFM 660 Grizzly/660 Hunter Edition | 02-08 | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA344X | FA344R | FA344SV | |||||
YFM 660 Ducks Unlimited Edition | 06-07 | Side x Side | FA84X | FA84X | FA84R | FA84R | FA84SV | FA84SV | FA344X | FA344R | FA344SV | ||||
YXR 660 | 04-07 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 700 RSPV - Raptor 50th Anniversary Edition | 06 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 700 Raptor | 06-12 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 700 Raptor | 13-14 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA323X | FA323R | ||||||
YFM 700 Raptor Special Edition | 07-08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 700 Raptor Special Edition | 09-15 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA428X | FA428R | FA428SV | |||||
YFM 700 Grizzly | 07-14 | Auto 4x4 Power steering EPS | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 700 Ducks Unlimited Edition | 07-09 | FA443X | FA443X | FA443R | FA443R | FA443SV | FA443SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | ||
YFM 700 Grizzly | 08-14 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | ||
YFM 700 Grizzly FI EPS Special Edition | 09-14 | Auto 4x4 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 700 Grizzly | 15-22 | 4WD | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 700 PFG Grizzly EPS | 15-22 | 4WD | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 700 DHFH Grizzly Hunter | 15-22 | 4WD | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | |
YFM 700 PHFH Grizzly EPS Hunter | 15-22 | FA443X | FA444X | FA443R | FA444R | FA443SV | FA444SV | FA445X | FA446X | FA445R | FA446R | FA445SV | FA446SV | ||
YXR 700 Rhino | 08 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | ||
FRONT | REAR | ||||||||||||||
Model | Year | Special Comments | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | Standard Pads / Shoes Left | Standard Pads / Shoes Right | Sintered R / HH Pads / Grooved Shoes Left | Sintered R / HH Pads / Grooved Shoes Right | SV Series Severe Duty Pads Left | SV Series Severe Duty Pads Right | |
YAMAHA | |||||||||||||||
YXR 700 Rhino | 08 | Parking brake | FA497X | ||||||||||||
YXP 700 Pro Hauler 700 | 04-06 | N/A | 534 | 534 | 534G | 534G | |||||||||
YXR 700 Rhino FI Ducks Unlimited Version | 09 | Auto 4x4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |
YXR 700 Rhino FI Ducks Unlimited Version | 09 | Auto 4x4 Parking brake | FA497X | ||||||||||||
YXR 700 Rhino FI Sport Edition | 09 | Auto 4x4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |
YXR 700 Rhino FI Sport Edition | 09 | Auto 4x4 Parking brake | FA497X | ||||||||||||
YXR 700 Rhino FI Sport Edition | 11-13 | Auto 4x4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |
YXR 700 Rhino FI Sport Edition | 11-13 | Auto 4x4 Parking brake | FA497X | ||||||||||||
YXR 700 Rhino FI | 09 | Auto 4x4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |
YXR 700 Rhino FI | 09 | Auto 4x4 Parking brake | FA497X | ||||||||||||
YXR 700 Rhino FI | 11-13 | Auto 4x4 | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | FA165X | FA135X | FA165R | FA135R | FA165SV | FA135SV | |
YXR 700 Rhino FI | 11-13 | Auto 4x4 Parking brake | FA497X | ||||||||||||
YXC 700 Viking VI | 15-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXC 700 Viking VI | 15-16 | Parking Brake | FA497X | ||||||||||||
YXC 700 Viking VI EPS | 15-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXC 700 Viking VI EPS | 15-16 | Parking Brake | FA497X | ||||||||||||
YXC 700 Viking VI EPS SE | 15-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXC 700 Viking VI EPS SE | 15-16 | Parking Brake | FA497X | ||||||||||||
YXC 700 PRGC Viking VI EPS Ranger Edition | 16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXC 700 PRGC Viking VI EPS Ranger Edition | 16 | Parking Brake | FA497X | ||||||||||||
YXM 700 Viking | 14-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXM 700 Viking | 14-16 | Parking Brake | FA497X | FA497X | |||||||||||
YXM 700 Viking EPS | 14-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXM 700 Viking EPS | 14-16 | Parking Brake | FA497X | FA497X | |||||||||||
YXM 700 Viking EPS SE | 14-16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXM 700 Viking EPS SE | 14-16 | Parking Brake | FA497X | ||||||||||||
YXE 70 Wolverine | 16-18 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine Hunter | 17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine EPS | 17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine EPS Hunter | 17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec | 16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec EPS | 16-17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec Hunter | 16 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec EPS Hunter | 16-17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec EPS SE | 16-17 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 70 Wolverine R Spec | 18 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 85 Wolverine X4 | 18 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 85 Wolverine X4 SE | 18 | FA642X | FA645X | FA642R | FA645R | FA642SV | FA645SV | FA674X | FA675X | FA674R | FA675R | FA674SV | FA675SV | ||
YXE 1000 YXE 10WPLML | 21-22 | FA676X | FA676X | FA676R | FA676R | FA676SV | FA676SV | FA677X | FA677X | FA677R | FA677R | FA677SV | FA677SV | ||
YXE 1000 YXF 10WPAMS | 21-22 | FA676X | FA676X | FA676R | FA676R | FA676SV | FA676SV | FA677X | FA677X | FA677R | FA677R | FA677SV | FA677SV | ||
YXP 1000 Pro Hauler 1000 | 04-05 | 534 | 534 | 534G | 534G | 534 | 534 | 534G | 534G | ||||||
YXZ 1000 EPS R | 16-21 | FA676X | FA676X | FA676R | FA676R | FA676SV | FA676SV | FA677X | FA677X | FA677R | FA677R | FA677SV | FA677SV | ||
YXZ 1000 EPS R SE | 16-21 | FA676X | FA676X | FA676R | FA676R | FA676SV | FA676SV | FA677X | FA677X | FA677R | FA677R | FA677SV | FA677SV |
